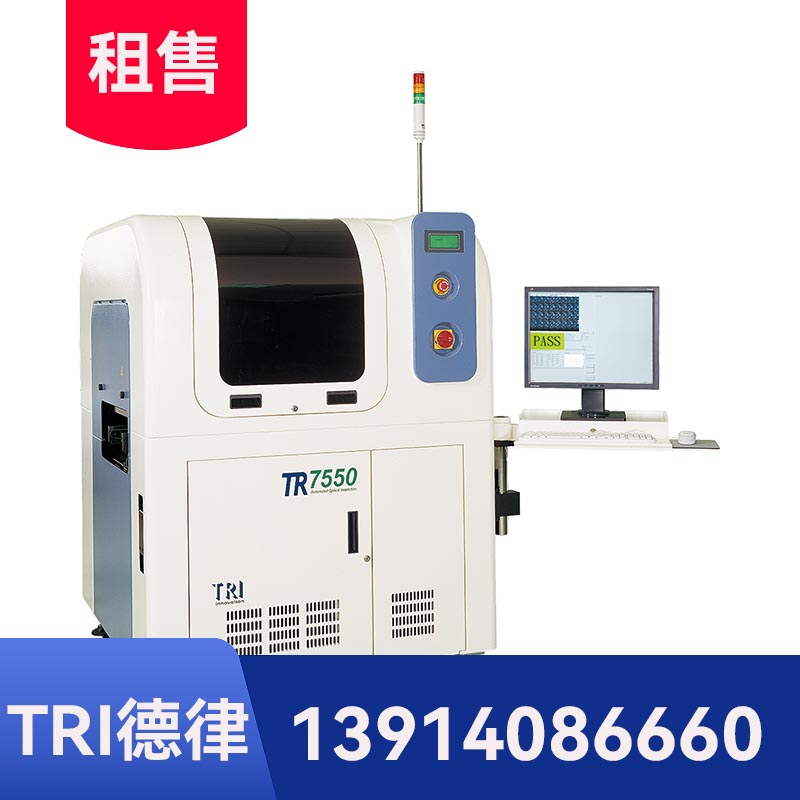

德律TR7550介紹：
配備上視3-CCD彩色相機及四個傾斜角度相機以優化測試涵蓋率，TR7550自動光學檢測機利用TRI的動態取像技術，能避免如走停式取像所產生的震動，提供更精準穩定的爐前爐后檢測。搭配多區域且高彈性的RGB+W彩色光源系統，配合低角度的光源設計，可提供極性及黑色元器件更好的檢測方案，并且可針對無鉛和傳統組裝電路板上的微小元件01005及提供更精準穩定的檢測能力。
德律TR7550特性：
1.高速在線型彩色AOI具備完整檢測涵蓋范圍
2.精準的3-CCD彩色相機可檢測01005微小元件
3.先進的RGB+W光源設定系統，可以提升錫點與標點之檢測力
4.線性馬達之X-Y 平臺提供無震動精準檢測
德律TR7550規格：
Optical System
| Imaging Method | Dynamic Imaging |
| Top Camera | XGA 3CCD color camera |
| Angle Camera | XGA mono camera |
| Imaging Resolution | 10 μm, 15 μm, 20 μm, 25 μm (factory setting) |
| Lighting | Multi-segment, multi-angle RGB LED (coaxial lighting optional) |
| 3D Technology | N/A |
| Max. 3D Range | N/A |
Inspection Performance
| Imaging Speed | 10 μm: 18 cm2/sec 15 μm: 40 cm2/sec 20 μm: 72 cm2/sec 25 μm: 110 cm2/sec |
Motion Table & Control
| X-Axis Control | Linear motor + linear scale with DSP-based controller |
| Y-Axis Control | Linear motor + linear scale with DSP-based controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 μm |
Board Handling

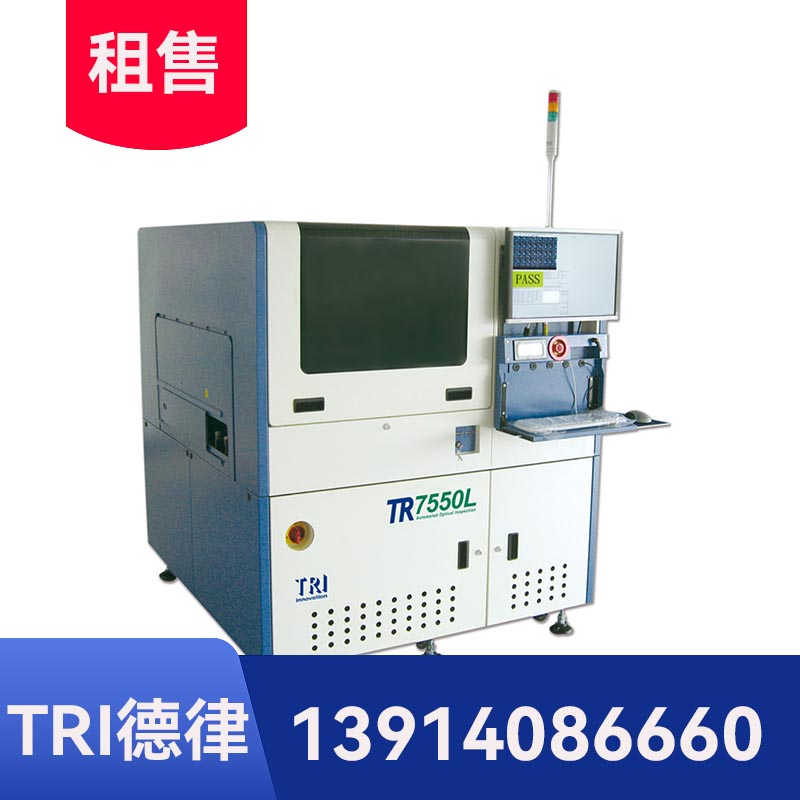

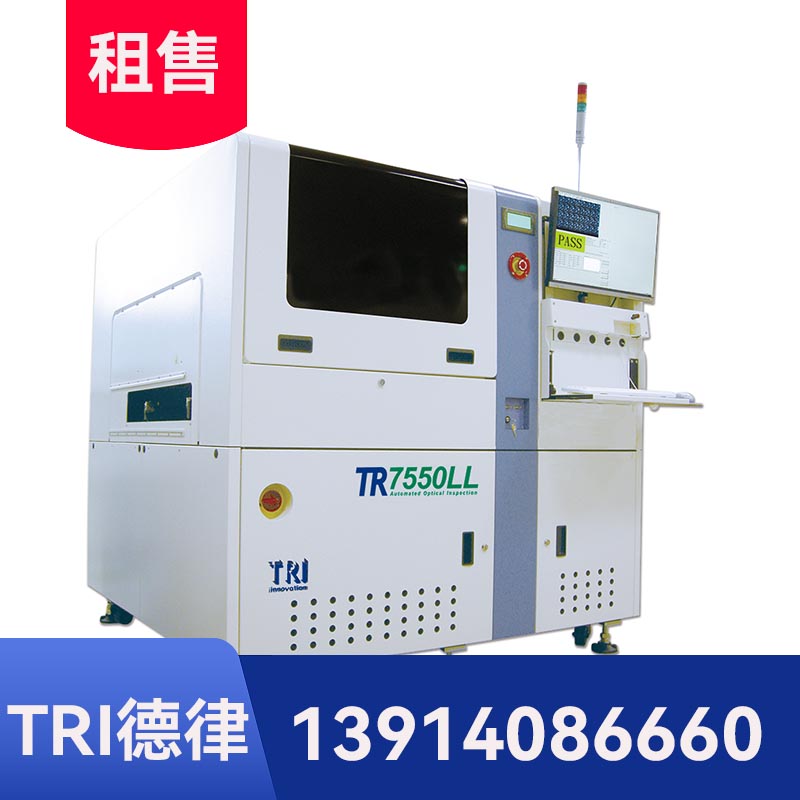

| Max PCB Size | TR7550 : 510 x 460 mm TR7550L: 660 x 610 mm TR7550LL: 850 x 610 mm |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | TR7550 : 3 kg (5 kg optional) TR7550L : 5 kg (8 kg optional) TR7550LL : 5 kg (8 kg optional) |
| Top Clearance | 40 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | TR7550 : 3.5 mm TR7550L : 3 mm TR7550LL : 3 mm |
| Conveyor | Inline Height: 880 – 920 mm * SMEMA Compatible |
Inspection Functions
| Component | Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Lifted Component |
| Solder | Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
